Wire Handling
Wire handling – fast and gentle
At Komax, the gentle, quick and high-quality preliminary processing of wires is a top priority. From dereelers of various capacities to deposit systems, coilers and binders: Komax’ large selection of integrable systems enables you to complement your wire processing machines as needed.

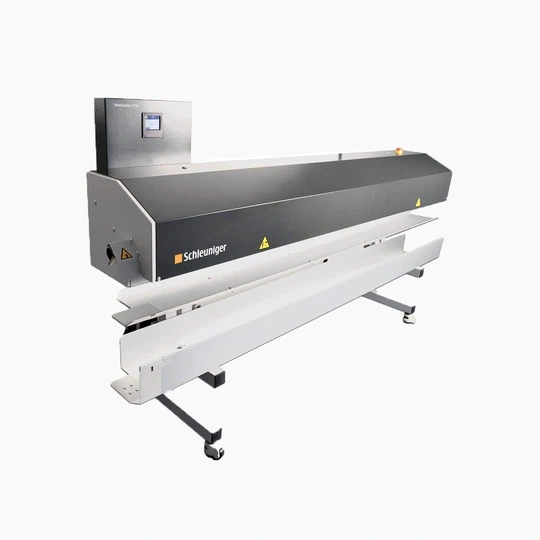

WireStacker 3150
The synchronized WireStacker 3150 is designed for precise axial stacking of cables – available in lengths of 2.5 m (8.2 ft), 5 m (16.4 ft), 7.5 m (24.6 ft), and 10 m (32.8 ft). Height of wire outlet 930 - 1100 mm Compressed-air connection 6 bara

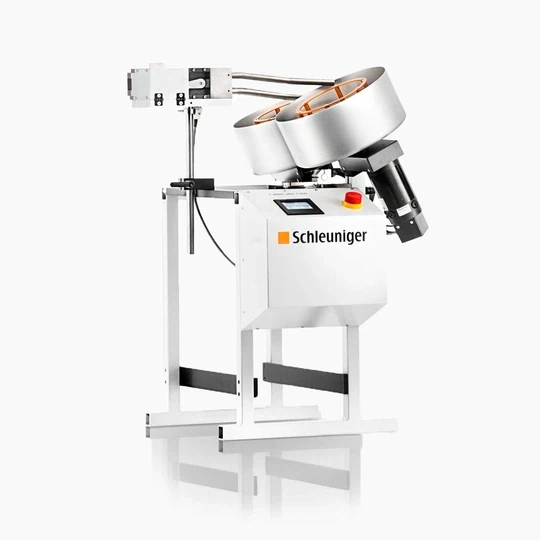

CableCoiler 1300
Fully synchronized cable coiler for cut and strip machines with two coiling units for round cables with up to 12 mm (0.47") diameter. 7” integrated touch screen Lockable machinerollers, coiling pans 152/81 mm (6.0“ / 3.2“), coiling disc for fiber optic cables

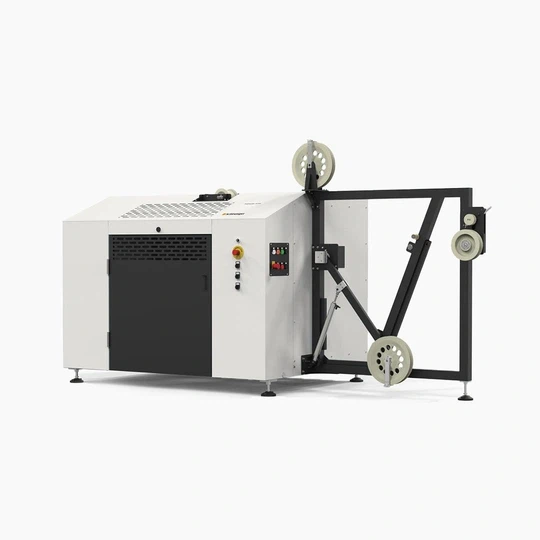

PreFeeder 4350
The PreFeeder 4350 handles reels weighing up to 400 kg (880 lbs) with wire up to 35 mm (1.3") in diameter. Its shaftless design allows for easy loading and unloading of the reels. Reel diameter 400 - 900 mm (16 - 36'') Reel arbor diameter max. 125 mm

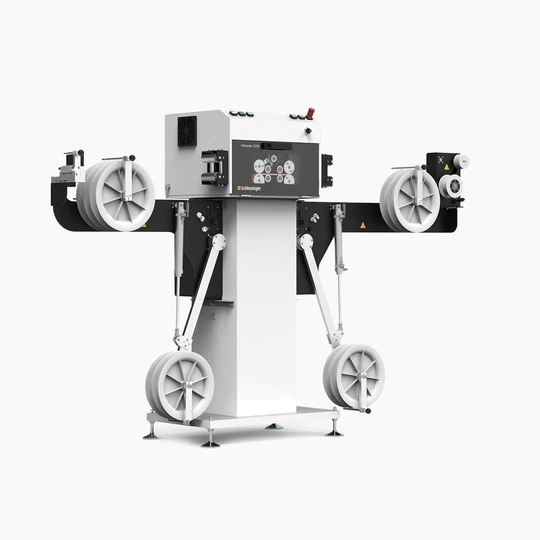

PreFeeder 3200
Belt-driven Accumulator storage capacity of 1,800 mm (70.8“) with 2 loops or 900 mm (35.4”) with 1 loop, depending on cable stiffness Pulling force up to 330 N
ads 115
High processing speed thanks to an optimum storage design Continuous control of dereeling speed Broad range of feedable round and ribbon cables Gentle wire feed Optimum supplement to automatic Komax cutting and stripping machines
F1110
Maximum throughput due to active synchronization of machine and process Automatic adjustment of the software parameters (self-learning system) Stops extremely quickly when knots are detected in wires Speed of up to 6 m/s can be adjusted directly on the prefeeder
F1150
Cable feeder for reels up to 300kg with minimized pull force Short changeover times thanks to simple setup system and hand held remote control High feeding speed of 3.5m/s Available for two cable diameter 18mm / 35mm
dps 375
Reasonably-priced deposit unit Mobile for convenient use in production Programmable batch size sorting Cable lengths up to approx. 4 m
