Cut and strip
Cutting and stripping machines – precision and high performance
Today’s insulation materials make the toughest possible demands on the cutting and stripping of strands and wires. Performance, precision and user-friendliness are the crucial factors for success.
Komax wire stripping machines incorporate the most modern technology, allowing them to be converted from one application to another quickly and easily. You can draw from a full range of integratable add-on modules to let your system grow right along with your requirements for optimum flexibility and reliable process control!
From simple cable cutters for cutting the widest variety of materials to high-performance automatic wire stripping machines for large wire cross-sections, Komax offers you a full range to choose from, complete with all the appropriate accessories. Preliminary and postprocessing of the wire is also a top priority. Wire stripping, whether round or flat cables, single or multi core, the cable cutters and wire stripping machines offer a wide range of processing.

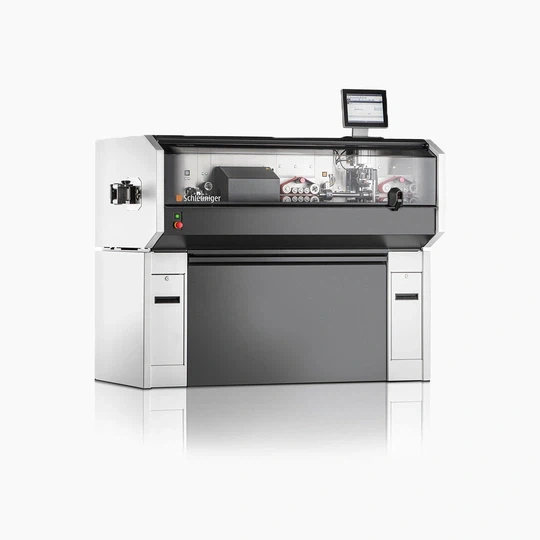

MegaStrip 9680
Cuts and strips wire, multiconductor, and shielded cables Pull-of length: left side 225 mm (8.85''); right side 360 mm (14.2'') Conductor cross section 1.5 - 120 mm² (16 - 4/0 AWG) or 240 - 300 mm² (500 - 600 MCM) SmartBlade blade cartridge 2 x 56 mm (2 x 2.20") 4 x 28 mm (4 x 1.10”) 56 + 2 x 28 mm (2.20” + 2 x 1.10")

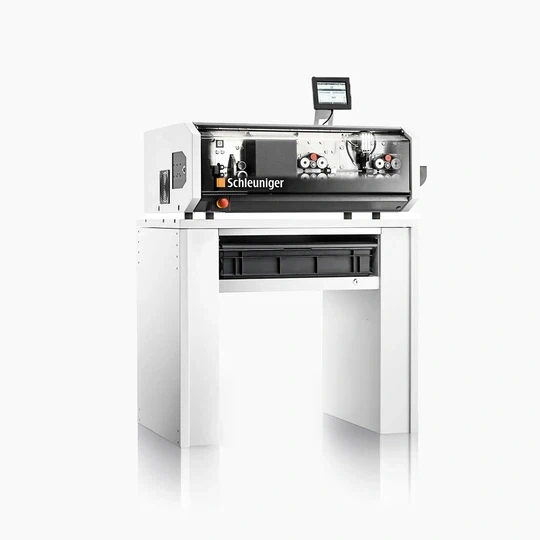

MultiStrip 9480
6 machine versions with additional options and accessories Wire diameter 0.5 - 12.5 mm (0.0196 - 0.49'') or 6.5 mm (0.26'') Conductor cross section S/M/MR/RS: 0.25 mm² - 20 mm² (24 - 4 AWG) Length 62.5 mm (2.46'') - 1000000 mm (39370'')

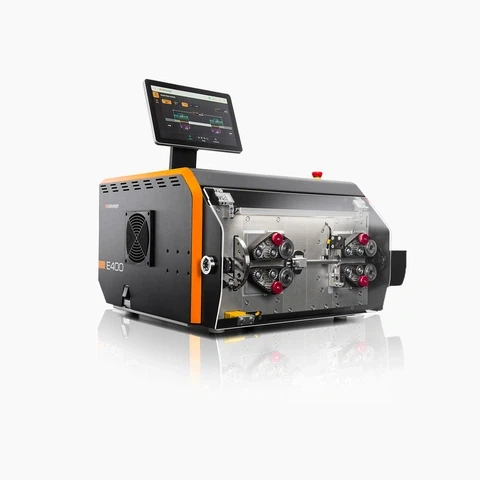

Cut & Strip Family E400
Processes wire, tubing, ribbon, and multiconductor cables Wire diameter 0.8 - 12.5 mm (0.032 - 0.45'') Conductor cross section 0.14 - 16 mm² (26 - 6 AWG) USB-A, USB-C, SMI (DA-15), Ethernet, ESC (E-Stop circuit)

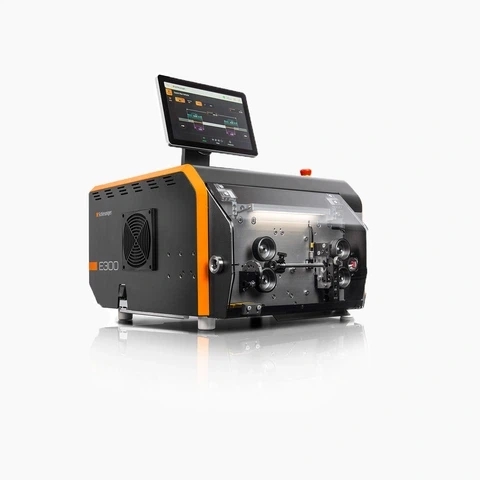

Cut & Strip Family E300
Cuts and strips wire, tubing, ribbon, and multiconductor Wire diameter 0.3 - 8 mm (0.012 - 0.31'') Conductor cross section 0.05 - 10 mm² (36 - 8 AWG) USB-A, USB-C, SMI (DA-15), Ethernet, ESC (E-Stop circuit)
Iota 330
As a comprehensive solution for cutting wires and cables, the Iota 330 is the right choice The machine is designed to cut a wide range of wires and cables to exact lengths, up to 1,000 m, as well as thermowells, pneumatic hoses, plastic pipes and much more. For outer diameters up to max. 25 mm For wire cross-sections up to 35 mm²
